Broadcast Channel API

Broadcast Channel interface

Creating or joining a channel

A client joins a broadcast channel by creating a BroadcastChannel object. Its constructor takes one single parameter: the name of the channel. If it is the first to connect to that broadcast channel name, the underlying channel is created.

// Connection to a broadcast channel
const bc = new BroadcastChannel("test_channel");

Sending a message

It is enough to call the postMessage() method on the created BroadcastChannel object, which takes any object as an argument. An example string message:

// Example of sending of a very simple message
bc.postMessage("This is a test message.");

Data sent to the channel is serialized using the structured clone algorithm. That means you can send a broad variety of data objects safely without having to serialize them yourself.

The API doesn't associate any semantics to messages, so it is up to the code to know what kind of messages to expect and what to do with them.

Receiving a message

When a message is posted, a message event is dispatched to each BroadcastChannel object connected to this channel. A function can be run for this event using the onmessage event handler:

// A handler that only logs the event to the console:
bc.onmessage = (event) => {
  console.log(event);
};

Disconnecting a channel

To leave a channel, call the close() method on the object. This disconnects the object from the underlying channel, allowing garbage collection.

// Disconnect the channel
bc.close();

Conclusion

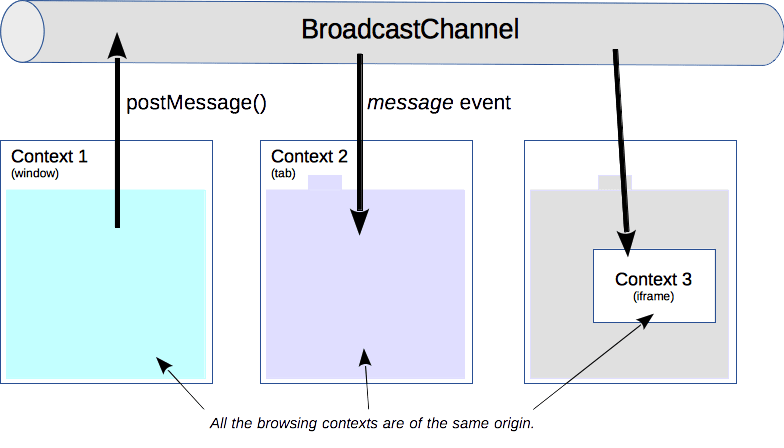

The Broadcast Channel API's self-contained interface allows cross-context communication. It can be used to detect user actions in other tabs within a same origin, like when the user logs in or out.

The messaging protocol is not defined and the different browsing contexts need to implement it themselves; there is no negotiation nor requirement from the specification.

Interfaces

BroadcastChannel

Represents a named channel that any browsing context of a given origin can subscribe to.

Specifications

Browser compatibility

See also

• BroadcastChannel, the interface implementing it.
