paint-order
Baseline
Widely available
This feature is well established and works across many devices and browser versions. It’s been available across browsers since January 2020.
The paint-order attribute specifies the order that the fill, stroke, and markers of a given shape or text element are painted.
Note:
As a presentation attribute, paint-order also has a CSS property counterpart: paint-order. When both are specified, the CSS property takes priority.
You can use this attribute with the following SVG elements:
Usage notes
| Value |
normal | [ fill || stroke ||
markers ]
|
|---|---|
| Default value | normal |
| Animatable | discrete |
- normal
-
This value indicates that the fill will be painted first, then the stroke, and finally the markers.
- [ fill || stroke || markers ]
-
The order of these three keywords indicates the order in which the painting happens, from left to right. If any of the three painting components is omitted, they will be painted in their default order after the specified components. For example, using
strokeis equivalent tostroke fill markers.
Example
<svg xmlns="http://www.w3.org/2000/svg" width="400" height="200">
<linearGradient id="g" x1="0" y1="0" x2="0" y2="1">
<stop stop-color="#888888" />
<stop stop-color="#cccccc" offset="1" />
</linearGradient>
<rect width="400" height="200" fill="url(#g)" />
<g
fill="crimson"
stroke="white"
stroke-width="6"
stroke-linejoin="round"
text-anchor="middle"
font-family="sans-serif"
font-size="50px"
font-weight="bold">
<text x="200" y="75">stroke over</text>
<text x="200" y="150" paint-order="stroke" id="stroke-under">
stroke under
</text>
</g>
</svg>

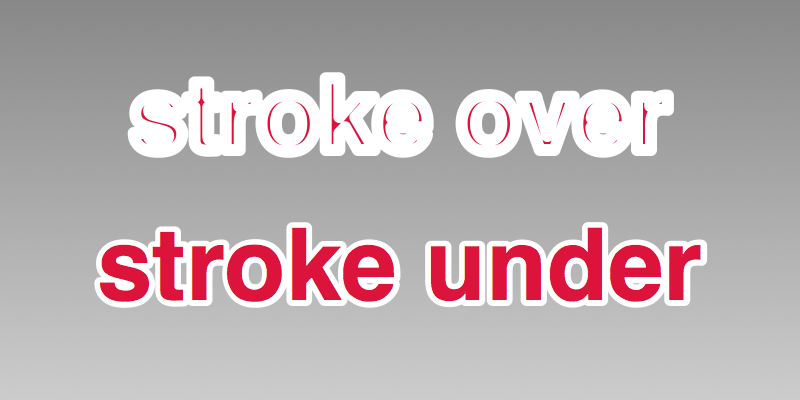

The example would be rendered as follows:
The stroke under effect could be achieved via the following CSS property:
#stroke-under {
paint-order: stroke;
}
Specifications
| Specification |
|---|
| Scalable Vector Graphics (SVG) 2 # PaintOrderProperty |
