<feDiffuseLighting>
Baseline
Widely available
This feature is well established and works across many devices and browser versions. It’s been available across browsers since July 2015.
The <feDiffuseLighting> SVG filter primitive lights an image using the alpha channel as a bump map. The resulting image, which is an RGBA opaque image, depends on the light color, light position and surface geometry of the input bump map.
The light map produced by this filter primitive can be combined with a texture image using the multiply term of the arithmetic operator of the <feComposite> filter primitive. Multiple light sources can be simulated by adding several of these light maps together before applying it to the texture image.
Like other filter primitives, it handles color components in the linearRGB color space by default. You can use color-interpolation-filters to use sRGB instead.
Usage context
| Categories | Filter primitive element |
|---|---|
| Permitted content | Any number of descriptive elements and exactly one light source element, in any order. |
Attributes
DOM Interface
This element implements the SVGFEDiffuseLightingElement interface.
Example
The following example show the effect of the <feDiffuseLighting> element on a circle with each light source available. Each time, the light comes from the upper left corner.
html
<svg width="440" height="140" xmlns="http://www.w3.org/2000/svg">
<!-- No light is applied -->
<text text-anchor="middle" x="60" y="22">No Light</text>
<circle cx="60" cy="80" r="50" fill="green" />
<!-- the light source is a fePointLight element -->
<text text-anchor="middle" x="170" y="22">fePointLight</text>
<filter id="lightMe1">
<feDiffuseLighting in="SourceGraphic" result="light" lighting-color="white">
<fePointLight x="150" y="60" z="20" />
</feDiffuseLighting>
<feComposite
in="SourceGraphic"
in2="light"
operator="arithmetic"
k1="1"
k2="0"
k3="0"
k4="0" />
</filter>
<circle cx="170" cy="80" r="50" fill="green" filter="url(#lightMe1)" />
<!-- the light source is a feDistantLight element -->
<text text-anchor="middle" x="280" y="22">feDistantLight</text>
<filter id="lightMe2">
<feDiffuseLighting in="SourceGraphic" result="light" lighting-color="white">
<feDistantLight azimuth="240" elevation="20" />
</feDiffuseLighting>
<feComposite
in="SourceGraphic"
in2="light"
operator="arithmetic"
k1="1"
k2="0"
k3="0"
k4="0" />
</filter>
<circle cx="280" cy="80" r="50" fill="green" filter="url(#lightMe2)" />
<!-- the light source is a feSpotLight source -->
<text text-anchor="middle" x="390" y="22">feSpotLight</text>
<filter id="lightMe3">
<feDiffuseLighting in="SourceGraphic" result="light" lighting-color="white">
<feSpotLight
x="360"
y="5"
z="30"
limitingConeAngle="20"
pointsAtX="390"
pointsAtY="80"
pointsAtZ="0" />
</feDiffuseLighting>
<feComposite
in="SourceGraphic"
in2="light"
operator="arithmetic"
k1="1"
k2="0"
k3="0"
k4="0" />
</filter>
<circle cx="390" cy="80" r="50" fill="green" filter="url(#lightMe3)" />
</svg>

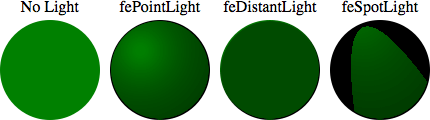

Expected rendering:
Live rendering:
Specifications
| Specification |
|---|
| Filter Effects Module Level 1 # feDiffuseLightingElement |
