<shape> CSS type
Deprecated: This feature is no longer recommended. Though some browsers might still support it, it may have already been removed from the relevant web standards, may be in the process of being dropped, or may only be kept for compatibility purposes. Avoid using it, and update existing code if possible; see the compatibility table at the bottom of this page to guide your decision. Be aware that this feature may cease to work at any time.
The <shape> CSS data type defines the specific form (shape) of a region. The region represents the part of an element to which the clip property applies.
Note:
<shape> and rect() work in conjunction with clip, which has been deprecated in favor of clip-path. When possible, use clip-path and the <basic-shape> data type instead.
Syntax
The <shape> data type is specified using the rect() function, which produces a region in the form of a rectangle.
rect()

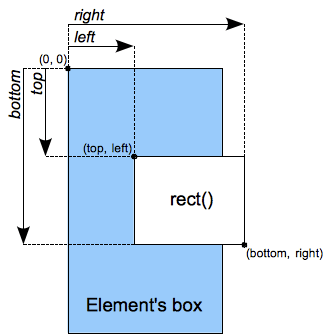

rect(top, right, bottom, left)
Values
- top
-
Is a
<length>representing the offset for the top of the rectangle relative to the top border of the element's box. - right
-
Is a
<length>representing the offset for the right of the rectangle relative to the left border of the element's box. - bottom
-
Is a
<length>representing the offset for the bottom of the rectangle relative to the top border of the element's box. - left
-
Is a
<length>representing the offset for the left of the rectangle relative to the left border of the element's box.
Interpolation
When animated, values of the <shape> data type are interpolated over their top, right, bottom, and left components, each treated as a real, floating-point number. The speed of the interpolation is determined by the easing function associated with the animation.
Example
Example demonstrating correct use of the rect() function
img.clip04 {
clip: rect(10px, 20px, 20px, 10px);
}
Specifications
| Specification |
|---|
| Cascading Style Sheets Level 2 # value-def-shape |
Browser compatibility
| desktop | mobile | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
<shape>
|
|
|
|
|
|
|
|
|
|
|
|
|
rect()
|
|
|
|
|
|
|
|
|
|
|
|
|
Legend
Tip: you can click/tap on a cell for more information.
- Full support
- Full support
- Deprecated. Not for use in new websites.
See also
- Related CSS property:
clip
